Corrosion Protection Materials
Visco-Elastic Coating


Visco-Elastic Coating

CYG visco-elastic coating consists of new-type high-performance visco-elastic polyolefin materials. visco-elastic tape combines the characteristics of both solid and liquid adhesive materials into one. The property of  CYG visco-elastic coating will last more than 30 years under normal conditions.

Visco-elastic coating are used in many fields from pipelines to subsea piles, from rail to cable joint protection. Especially for irregular objects, such as Tee joint, flange, valves corrosion protection.

Visco-Elastic Sealant coating features:

Simple surface preparation and directly applied on steel, PE, PP, FBE without primer.
Compatible to 3LPE, CTE-coating and asphalt.
Excellent impermeability to water and oxygen.
Perfect chemical resistance.
Self-healing for general coating defects.

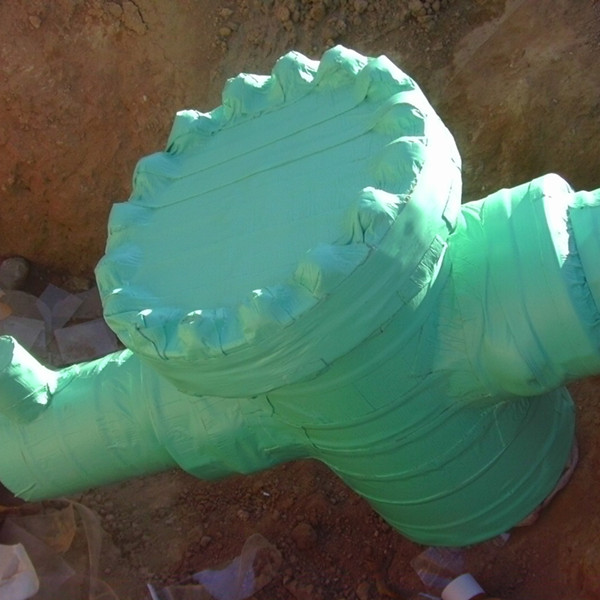

Applicable to field joint coating and repair of damaged coating on pipeline as well as any shape fittings such as elbow, bend, T-joint and insulated flange.
Applicable temperature-30℃~60℃.
Controllable construction quality and seldom affected by environment and operator skill.

An eco-friendly material to be stored for a long time.


Visco-Elastic Coating Properties :

Property

Test method

Value

Color

Visual

green

Thickness

ISO21809/A

1.8mm

OperatingTemperatureRange



-45~70

Peel Strength to Steel23

Coverage Rate





ISO21809/D

5N/cm

95%

Peel Strength to PE23

Coverage Rate

5N/cm

95%

Peel Strength to Steel-45

Coverage Rate

5N/cm

95%

Shear Strength to Steel23

Coverage Rate



ISO21809/L

0.02MPa

95%

Shear Strength to Steel-45

Coverage Rate

1.0 MPa

95%

Indentation Test with Outer Tape

SY/T0315-G

15J

Indentation Test with Outer Tape

EN12068-G

10MPa, 15KV

Cathodic Disbondment1.5V,65,30d

SY/T0315-C

5mm

Drip Resistance85

ISO21809/J

No dripping

Volume Resistivity

GB/T 1410

1×1012 Ω/m2

Water Absorption

SY/T0414-B

0.03%

Hot Water Immersion70120d

GB/T1733

No change

Heat Aging90,100d

Actual measurement

Coverage rate 95%

Chemical Resistance90d,10% HCI

SY/T0315

No change

Chemical Resistance90d, 10% NaOH

SY/T0315

No change

Chemical Resistance90d, 3% NaCI

SY/T0315

No change



Visco-Elastic Sealant Coating Specification

Tape Thickness: 2.0 mm

Tape Width: 100mm oraccording to your requirements

Tape Length: 10 m/Rollor according to your requirements.

Pls feel free to contact us for further discussion about Visco-Elastic Sealant Solution.
