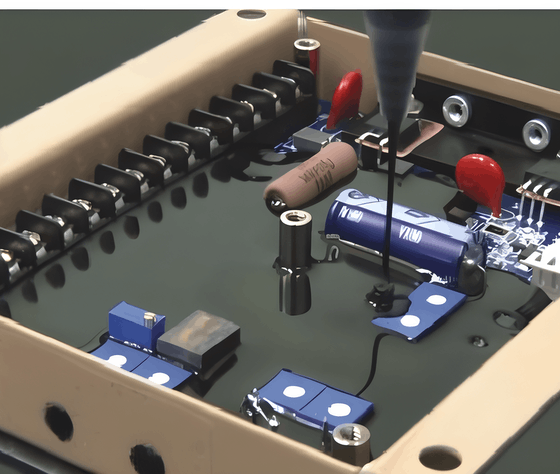

CT-S3100 Two-Component Silicone Thermal Conductive Potting Adhesive

CT-S3100 is a two-component addition-curing silicone thermal conductive potting compound.This product consists of two components,A and B.Component A is grayish-black in color;while component B is white. When the two components are uniformly mixed in a weight ratio or mass ratio of 1:1,They will solidify into a gray flexible elastomer.

Want to learn more about the solutions? Want to see the complete case study?

Core Features

Efficient thermal conduction and heat dissipation

Quickly dissipate heat from electronic components to prevent overheating failure

Efficient thermal conduction and heat dissipation
Insulation, Sealing & Protection

High insulation, waterproof and moisture-proof, isolating moisture and corrosive media

Insulation, Sealing & Protection
Flame-retardant and durable protection

UL94 V-0 flame retardant grade, anti-aging and anti-yellowing, stable performance for long-term service

Flame-retardant and durable protection

Features

Flexible and convenient construction

Low viscosity for easy potting, compatible with manual and automatic dispensing systems, with two curing options: room temperature curing or heat accelerated curing.
Elastic & Repairable

Soft and elastic after curing; the equipment can be opened for maintenance, and the compound is reusable.
Excellent comprehensive performance

Strong adhesion, weather and aging resistance, flame retardant and safe, suitable for complex working conditions

Technical Parameters

	Item		Standard
Before solidification	Appearance	A Component	Grey black
	Appearance	B Component	White
	Viscosity	A Component	2500±500MPa ·s
	Viscosity	B Component	7500±500MPa ·s
	Density	A Component	1.62±0.05g/cm³
	Density	B Component	1.62±0.05g/cm³
	A:B Mixing ratio		1:1
	Mixed viscosity		1800±500MPa ·s
	Applicable period 100g/25℃		1±0.5h
	Surface drying time 25℃		4h
	Solidification time 25℃		12h
	Solidification time 60℃		0.5h
After solidification	Appearance		Grey
	Density		1.62±0.05g/cm³
	Hardness		25±5 Shore 00
	Coeficient of expansion		190μm/m · ℃
	Dielectric strength		≥15KV/mm
	Dielecri constant IMHz		≤3.7
	Los factor IMHz		≤0.08
	Volume resistivity		≥1.0×10“Q ·cm
	Elongation at break		60%
	Thermal conductivity		≥0.8W/m ·K
	Flame retardant		V-0

Swipe Left or Right to View the Full Table

Application Areas

Power Electronics

Potting for inverters, power modules, transformers and capacitors
Industrial Electrical

Moisture-proof insulation for circuit boards, protection for sensors and controllers
Repairable equipment

Sealing protection for electronic assemblies requiring regular maintenance and upgrade

Want to Learn More About These Application Scenarios?

Product Specifications

1.50kg/set(Component A:25kg/barrel,Component B:25kg/barrel);
2.Component A:200kg/barrel,Component B:200kg/barrel;
3.Customizable according to customer requirements.

Storage and Transportation

1.Store in a cool,dry,and light-protected place below 25℃,and keep sealed.
2.This product is composed of non-flammable and non-explosive materials and may be transported as general chemicals.During transportation,precautions should be taken to avoid direct sunlight exposure,compression,and impact to prevent leakage.
3.The shelf life of this product is 6months.
